Modern Cryptography
Not just ciphers — an entirely different discipline
This collection includes ciphers, people, historical and cultural context, mathematical foundations, hashes, signatures, and protocols. A cipher reversibly transforms plaintext into ciphertext with a key, but many exhibits explain other parts of cryptography. This page connects that broader history to modern practice.
Classical → Modern: Compare Historical Weaknesses with Modern Design
| Classical Cipher Type | Historical Limitation | Modern Solution | Modern Example |
|---|---|---|---|
| Caesar / Monoalphabetic | Frequency analysis — letter mapping preserved | Nonlinear substitution combined with diffusion and key mixing | AES SubBytes |
| Homophonic Substitution | One-to-many substitution can retain language and structural clues | Computational security under a defined attack model | AES in an appropriate authenticated mode |
| Polyalphabetic / Vigenère | Repeating key creates detectable periodicity | Pseudorandom keystreams with per-key nonce uniqueness and counter limits | ChaCha20, AES-GCM |
| Transposition (Rail Fence, Columnar) | Letter counts preserved; language and ordering clues can help analysis | Nonlinear substitution combined with diffusion and key mixing | AES ShiftRows + MixColumns |
| Playfair / Hill (block) | Small blocks leak digraph statistics; linear algebra solvable | 128-bit blocks, non-linear operations, round keys | AES (128-bit block) |
| Fractionation (Bifid, ADFGVX) | Coordinate mixing insufficient with static key square | Multiple rounds of mixing with key-derived round keys | AES 10–14 rounds |
| Layered classical systems | Substitution + transposition — each layer still attackable | Multiple designed rounds; security depends on the whole construction | AES, Camellia, SM4 |
| Machine ciphers (Enigma, Lorenz) | Physical key distribution; operator errors; structural flaws | Authenticated public-key methods help establish shared secrets | RSA, Diffie-Hellman, ECDH |
| One-Time Pad | Impractical key management — reuse is catastrophic | Computationally secure with short key; KDFs for key derivation | AES-256, X25519 key exchange |
Confusion & Diffusion
Making the relationship between key and ciphertext as complex as possible. Caesar has a simple key relationship: C = P + 3. One known pair reveals the entire key.
Modern solution: AES S-boxes are highly non-linear. The S-box has a precise public algebraic definition. Its nonlinearity works with the other round operations; an S-box alone does not make encryption secure.
Spreading each plaintext bit's influence across many ciphertext bits. Caesar does not spread changes across letter positions: change one letter, change exactly one ciphertext letter.
Modern solution: AES combines ShiftRows and MixColumns to spread byte dependencies. Across suitable inputs, changing one bit of a full AES input changes about half the output bits on average; this is not an exact per-message promise or a standalone security proof.
What Replaced Classical Cryptography

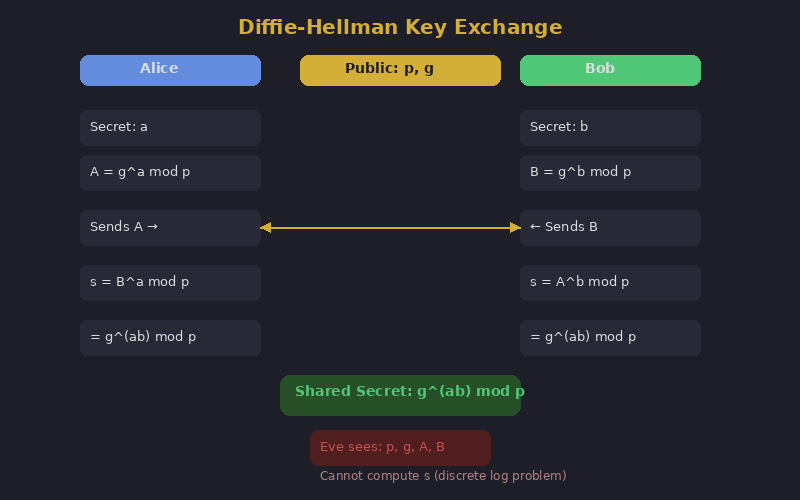

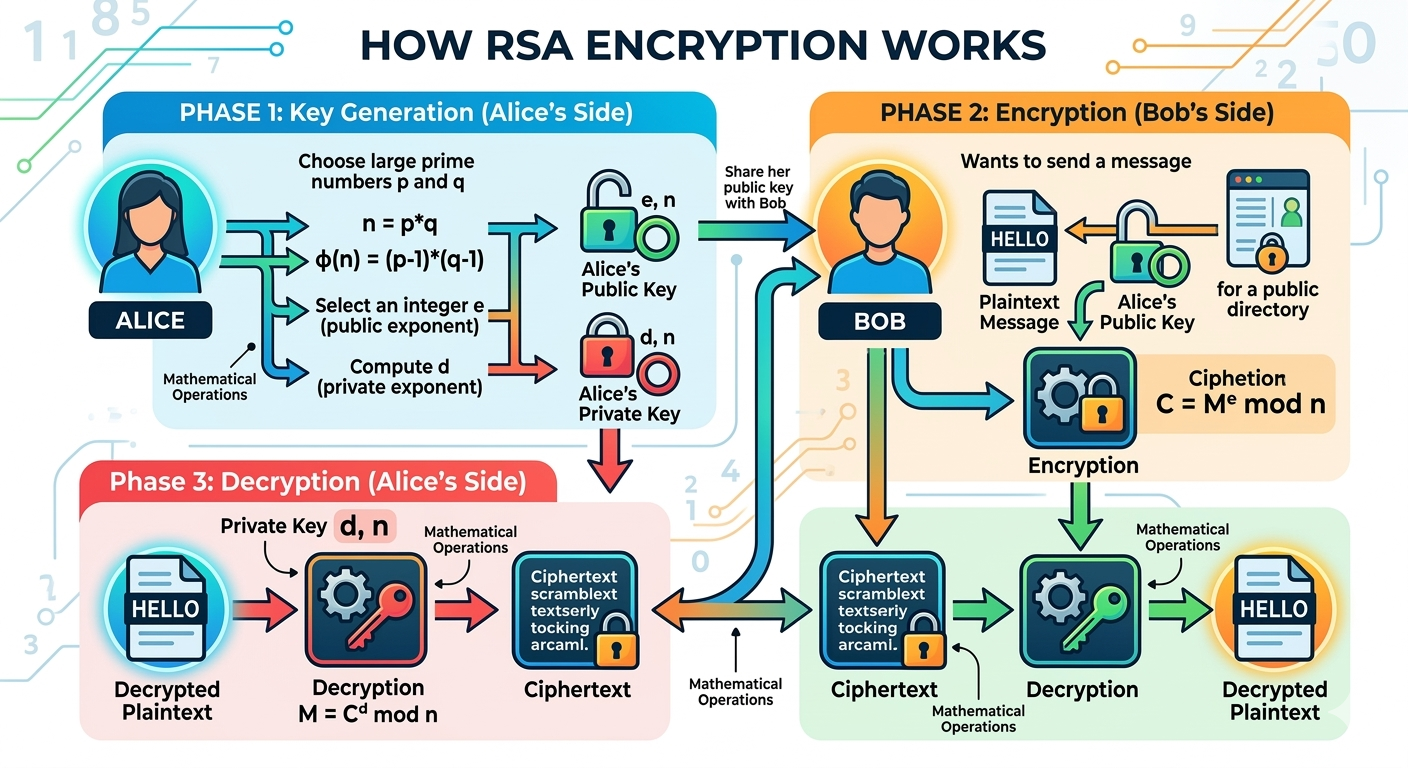

Taxonomy note: Symmetric and public-key encryption schemes both reversibly transform plaintext into ciphertext. RSA encryption and RSA signatures are distinct schemes with different encoding and padding requirements. Diffie–Hellman establishes shared secrets; signatures authenticate messages; hash functions produce digests. These primitives solve different problems and must be combined with appropriate protocols.
Looking for the exhibits? Explore these constructions — DES, Diffie-Hellman, RSA, AES, and SHA-256 — and further exhibits in Hall XI · Modern Cryptography. This page provides the wider context: the journey from classical failure to modern practice, and additional constructions such as ChaCha20, ECDH and post-quantum schemes.

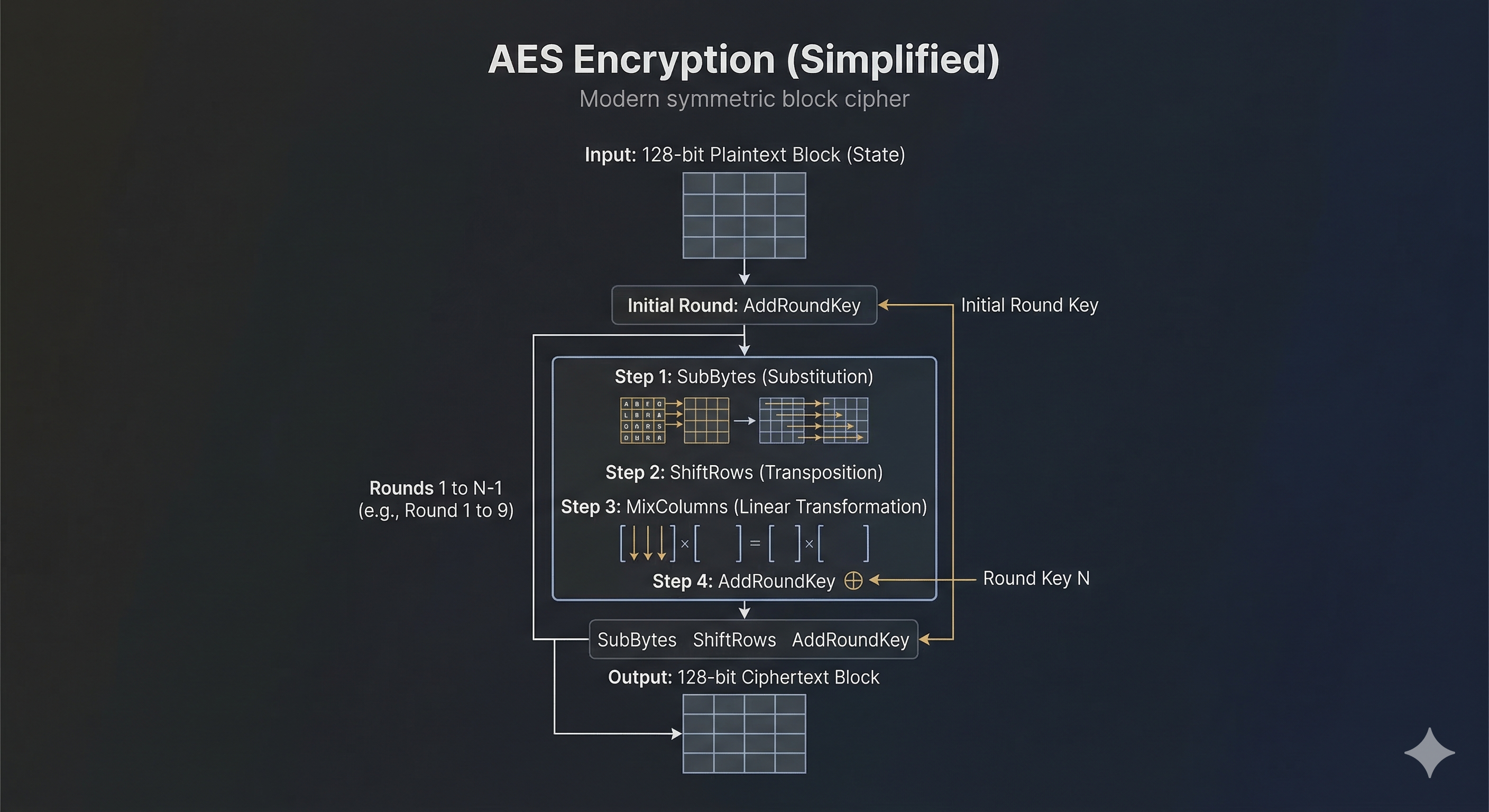

128-bit blocks, 256-bit key, 14 rounds. 2²⁵⁶ possible keys; no practical key-recovery attack is known against correctly used full-round AES. Protocol, mode and implementation failures remain separate risks.
Designed by Daniel Bernstein. Original ChaCha uses a 64-bit nonce and 64-bit block counter. IETF ChaCha20 (RFC 8439) uses a 256-bit key, 96-bit nonce, and 32-bit block counter. Both XOR plaintext with a deterministic pseudorandom keystream: never reuse a nonce under the same key, and never let the block counter wrap. Original specification; RFC 8439 §§2.3, 4 and errata.
Sufficiently large, fault-tolerant quantum computers could break conventional RSA and Diffie–Hellman using Shor’s algorithm. NIST standardized the first three algorithms from its post-quantum project in 2024: ML-KEM (formerly CRYSTALS-Kyber, key encapsulation) and ML-DSA (formerly CRYSTALS-Dilithium, signatures), both based on structured lattice problems. NIST also standardized the hash-based SLH-DSA signature scheme in 2024. These are intended to resist known quantum attacks; they are not proofs against every future attack. The mathematics is on exhibit in the Hall of Foundations: lattices & the SVP, the closest-vector problem, Learning With Errors — an introduction to the mathematical setting of lattice-based standards — and polynomial rings.
ECDSA signatures verify under a public key rather than concealing content; attribution to a person requires a trusted key association: a private scalar on an elliptic curve, a public point, and a signature anyone can check. Suitable 256-bit elliptic-curve groups and 3072-bit RSA are commonly compared at roughly 128 bits of classical security, under their respective assumptions. Security requires an appropriate curve and implementation. Reused or biased nonces, side-channel leakage, faults and validation errors can compromise a signer. Shor’s algorithm also applies to the elliptic-curve discrete logarithm problem. The group law is in the Hall of Foundations.
Shamir’s Secret Sharing (1979) represents the secret in a finite field and samples the remaining polynomial coefficients independently and uniformly. With distinct nonzero share coordinates, k valid shares reconstruct the secret; fewer than k preserve its prior distribution. This information-theoretic property also holds against quantum computation, but does not protect stolen shares or faulty implementations. Threshold signing protocols can build on secret-sharing ideas but require additional protections; plain Shamir sharing does not authenticate shares or perform signatures.
Zero-knowledge proofs combine a soundness guarantee with a specified bound on what the verifier can learn beyond the statement. The guarantee depends on the protocol and security model; toy protocols can have a visible nonzero soundness error. The succinct variants — zk-SNARKs and STARKs — validate private transactions and compress whole blocks of computation into a proof small enough to check on a blockchain. The Fiat–Shamir transformation connects certain interactive identification protocols to noninteractive proofs or signatures under additional assumptions. A signature is not automatically a general-purpose zero-knowledge proof.
A valid tag can belong to an old message
Suppose A carries counter 1 and B carries counter 2. Each tag covers the counter and message under the same session key. An observer records both. Compare a receiver that remembers only the last token with one that accepts a valid tag only when its counter exceeds the highest accepted counter, initially 0.
Swipe or scroll the table horizontally to see every column. Keyboard: focus the table area and use the arrow keys.
| Delivery | Tag check | Last-token-only rule | Increasing-counter rule |
|---|---|---|---|
| A (1) | Valid | Accept | Accept; highest = 1 |
| B (2) | Valid | Accept | Accept; highest = 2 |
| A (1), replayed | Valid | Accept | Reject; highest = 2 |
| A changed to counter 3; old tag | Invalid | Reject | Reject; highest = 2 |
| Forget receiver state, keep key; replay A (1) | Valid | Accept | Accept; highest = 1 |
The A/B/A sequence defeats last-token-only checking. Resetting state under the unchanged key defeats the counter rule too. Rejected packets must not advance the accepted counter. This simplified rule rejects out-of-order messages; transports that allow reordering need a defined replay window and session lifecycle, including counter exhaustion. Replaying recorded ciphertext does not require encrypting a new message with a reused nonce: sender nonce uniqueness and receiver freshness are separate requirements.
Try the existing Crypto Lab: Regex Veil, in its Freshness section: open authenticated fragments twice, then reset the used-counter window. It is a local protocol teaching model, not a deployed transport.
Sources: Ross Anderson, Security Engineering: A Guide to Building Dependable Distributed Systems, third edition (2020), §4.3, printed pp. 122–124 (PDF pp. 169–171); David Wong, Real-World Cryptography (2021 edition), §3.3.3, PDF pp. 140–143 in the reflowed edition, which has no printed pagination. The table is a museum teaching example.
The museum's final lesson: Many historical systems failed through structural weaknesses, key reuse, or operational mistakes; others are obsolete or unresolved. A correctly used one-time pad retains perfect secrecy. Modern cryptography adds computational security and public-key methods, while still depending on sound key management, and extends into protocols, signatures, and proofs.
